Cigarette Making Machine,Cigarette Maker
MJ are able to offer brand new or used cigarette making machine or filter cigarette maker such as MK8 Mark 8 Cigarette Making Machine For Filter Tipped Cigarette ,Molins MK9 cigarette making machine groups,PROTOS 70 Cigarette Making Machine made in China for sale.
We also have one kind of small scale cigarette making machine, Cigarette Making Machine: Rollers & cigarette Maker, industrial cigarette rolling machine for sale
The good price for you.its capacity is 1000 CPM. its work principle is the same with MOLINS mark 8.it can meet the requirement for who want to setup small cigarette factory. The video for this machine is also available.
It adopts the principles of tobacco formation sucked by vacuum and the mean weight control, and becomes a filter-tipped cigarette making machine in a higher medium speed after successful modification and perfection with stable performance, high working efficiency.
Compared with the old maker,our new maker has the advantages as follow:
1. Techology
The old model maker, used in China at 60-70s last century, it works without air pumps, no electric box, just carding drums , a steal container , with one motor,and the GARNITURE ASSY S.A., and knife part.
Our new model maker, with the printing logo function on the cigarette rolling paper, air pumps to blow the cut tobacco, tobacco transmit part,and high speed cutting part and so on.
2. Speed
The old maker make cigarette with the speed of 200-300 CPM,(cigarette per minute) but our new maker can reach 800-1000 CPM.
3. Cigarette quality.
The old maker use the Gravity feeding , physically working according to the gravity. It can not guarantee the cut tobacco uniform distribution in the rolling paper. maybe the cigarette inside is empty, not full rolling. rejection rate may reach 20%. Our machine is blowing with air pumps, make the cut tobacco rolling average and fully, so can guarantee the cigarette quality, rejection rate is low than 5%.
We have a hopper with new technology, similar like MARK8 hopper but a smaller one. it would add cut tobacco automaticliy and evenly.Please check the picture attached for hopper for reference.

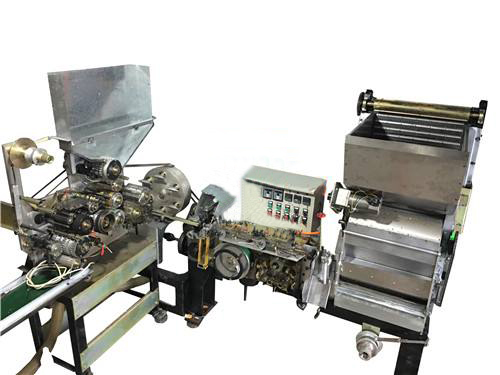

MJ-2 cigarette making machine as below
MJ-2 cigarette making machine is the fast but small cigarette making machine, It copy from the MAX5 plug filter assembler structure , use the unique Rotary table with spider hands. It can run most efficient speed compare with MK8 cigarette machine with MAX3 .
Medium speed cigarette making machine has been made by maiju company successfully . It can reach 1500 cigarettes per minute, good performance and quality made it a popular model among its brothers of MK8.
Several cigarette size can be made by this machine such as king size . The nano slim, super slim of size can be custom-made too.
It is suitable for the small factory or family workshops to make cigarette as its reasonable price, simple operation,and small size.
| utput | 1000-1500cig/min |
| Cigarette Length | 70-99mm |
| Cigarette Diameter | 5.4mm,7.8mm or others |
| Filter Tip Length | 20-30mm |
| Filter Tip Diameter | 5.4-9.0mm |
| Ambient Conditions | 6*105pa |
| Air Pressure | 4*105pa |
| supply Voltage | 380V±22V |
| Lighting Voltage | 50HZ±1HZ |
| Machine Weight | 1100KG |
| Total power | 11KW |
MJ are able to supply machinery listed above in as is condition.we also can supply other type cigarette packer,cigarette packing machine.
Some machinery is available for immediate installation, For some reason, usually the machine need about 40-60 days to produce.

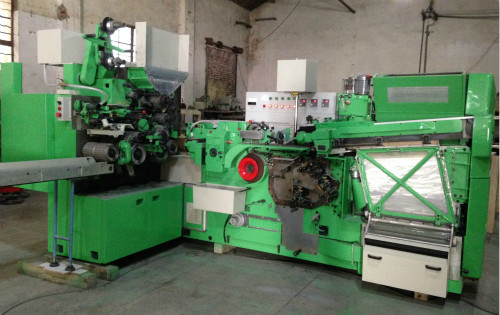

MK8 industrial Cigarette Making Machine parameter as below:
MK8 industrial Cigarette Making machine combination consists of MK8 cigarette maker, MAX3 plug assembler and double row catcher, which are originated from Molins MK8 and Hauni MAX3. It has following features:
Features:
•Speed:2000cig./min.
•PLC control and frequency inverter for main motor.
•Power requirement:
Maker: 9.3W
Plug assembler: 7.3W
•Compressed air required: 110-130m3/h(0.05~0.08Mpa)
•Machine weight:
Maker: 3.05t
Plug assembler: 1.8t
•Machine measurements: (LxWxH)
Maker: 3259x1200x1800mm
Plug assembler: 2860x1050x2200mm
Main Parameters :
| # | Items | 参数 Parameters |
|---|---|---|
| Output | ||
| 1 | Production speed | 2000cig/min |
| 2 | Rod Speed | 140-175m/min |
| 3 | Cut-off Speed | 2000-2500r/min |
| Product Dimension | ||
| 4 | Filter Cigarette Length | 65-120mm |
| 5 | Rod Cigarette Length | 45-90mm |
| 6 | Rod Cigarette Diameter | 6.3-9.0mm |
| 7 | Filter Plug Length | 60-159mm |
| 8 | Filter Tip Length | 5-30mm |
| 9 | Filter Tip Diameter | 6.3-9.0mm |
| 10 | Tipping Paper Length | 13-45mm |
| Ambient Conditions | ||
| 11 | Air Pressure | 6×105pa |
| 12 | Working Pressure | 4×105pa |
| 13 | Supply Voltage | 380±38V(3phases) |
| 14 | Lighting Voltage | 20±22V |
| 15 | Frequency | 50Hz±1Hz |
| Machine Weight | ||
| 16 | Maker | 3050KGS |
| 17 | Plug Assembler | 1800KGS |
| 18 | Total Power | 17KW |

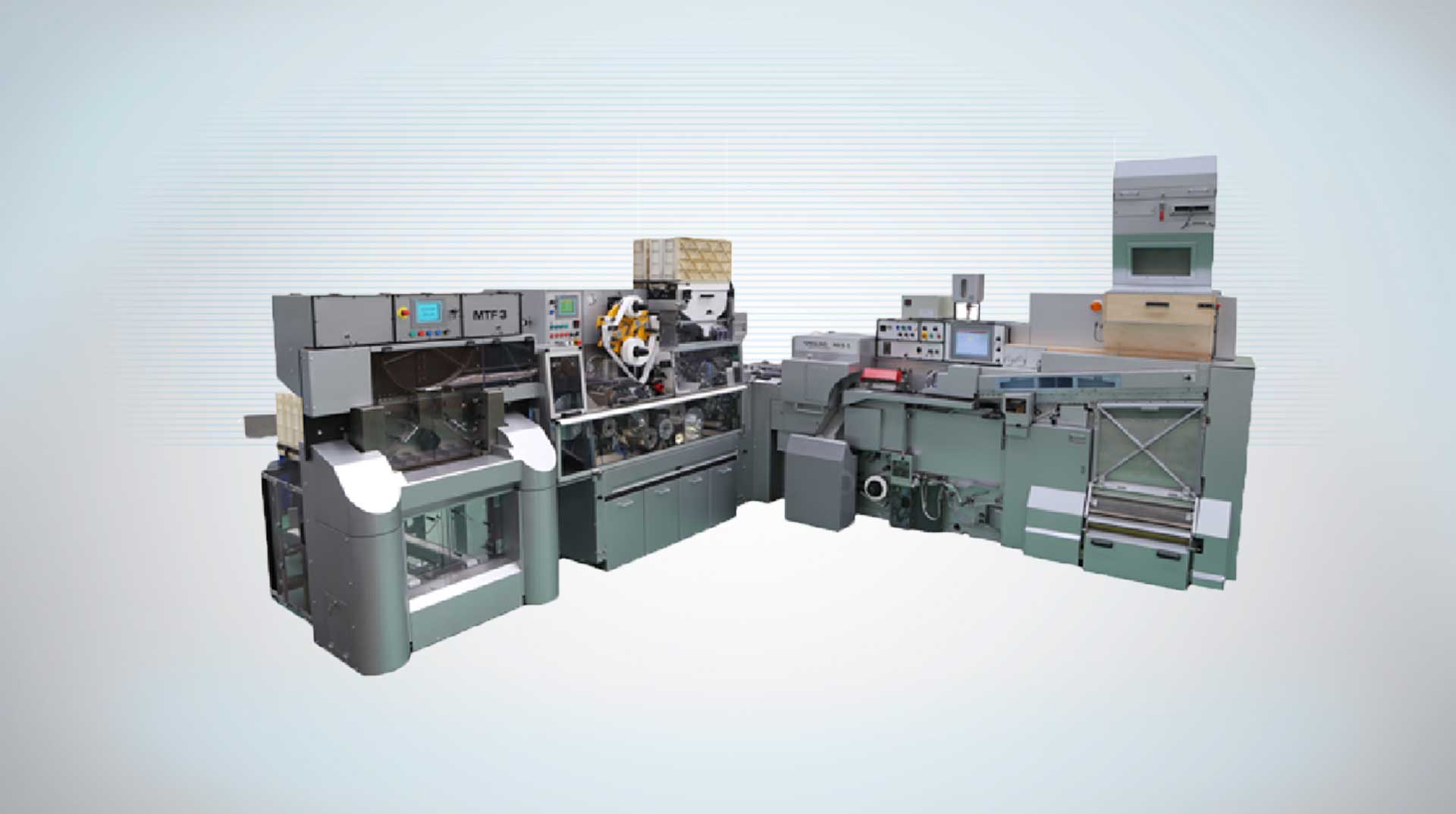

MK9 commercial Cigarette Making Machine parameter as below:
MK9 commercial Cigarette Making Machine has been upgraded with AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision. As the result, the operation of this machine is more precise and thus high quality output is guaranteed.
Microwave weight control system is adopted.
Friendly human-machine interface with features of easier production parameter setting, working condition real-time displaying, shift production statistic output, and machine fault alarming and trouble shooting solutions.
Features:
•Speed:5000cig./min.
•Cigarette length: 65-110mm(tobacco rod length and filter length can be tailor made)
•Cigarette diameter: 5.4-9mm
•Total power consumption: 50kw
•Machine measurements: (LxWxH)
Mark9 tobacco rod maker: 3630x1270x870mm
MAXS filter assembler: 3340x1340x1820mm
HCF80 Tray loader: 2350x2400x2100mm
| Items | Parameters | |
|---|---|---|
| Output | ||
| 1 | Production speed(King Size) | 5000cig/min |
| 2 | Production speed(Supper Slim) | 3500cig/min |
| Product Dimension | ||
| 3 | Filter Cigarette Length | 65~110mm±0.5mm |
| 4 | Rod Cigarette Length | 55~90mm |
| 5 | Rod Cigarette Diameter | 5.4~9.0mm |
| Ambient Conditions | ||
| 6 | Air Pressure | 6×105pa |
| 7 | Supply Voltage | 380VA±10%(3phase) |
| 8 | Frequency | 50Hz±1Hz |
| 9 | Total power | 50KW |
| 10 | Total Weight | 8600KGS |
| Outside dimension | ||
| 11 | Maker | 4185×1390×2100MM |
| 12 | Plug Assembler | 3557×1537×2210MM |
| 13 | Tray filler | 3350×2530×1900MM |

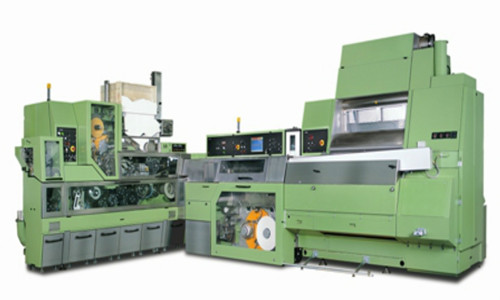

Protos 70 automatic Cigarette Making Machine parameter as below:
PROTOS 70 cigarette making machine
Model ZJ17, a high-speed cigarette making and filter assembling machine group, is made under introducing the technology of PROTOS 70 from Hauni Maschinebau AG Germany by China National Tobacco Corporation, in the way of Technology-Trade combined cooperation in 1992. It is manufactured by Changde Tobacco Machinery Co., Ltd after technology digestion and absorption, innovation and improvement, having features as follows:
1. Stable production: The cigarette output is 7000cig/min, the max. tobacco rod forming speed is 490m/min.
2. Ensure high quality cigarettes, and automatically detect air leakage, loose end, filter missing, soft spots, hard spots, too light, too heavy and other substandard cigarettes in the production process.
3. Complete trouble- shooting system: It can automatically test the faults when it goes wrong, and then raise the alarm, display the faults, stop running to analyze and make statistics on faults.
4. Complete weight control system: It measure cigarette weight with high-precision control, and it can offset automatically to save cut tobacco, greatly reducing the production cost of cigarette factories.
5. Automatic monitoring performed in manufacturing process: It can automatically analyze, make statistics and management for production data, and output the data in report forms.
6. Convenient and efficient human-computer interaction system.
7. With small volume and weight, less area is possessed.
| # | Items | 参数 Parameters |
|---|---|---|
| Output | ||
| 1 | Production speed | 7000cig/min |
| 2 | Rod Speed | 490m/min |
| Product Dimension | ||
| 3 | Filter Cigarette Length | 65mm～120mm |
| 4 | Rod Cigarette Length | 54mm～90mm |
| 5 | Cigarette Circumference | 21.7mm～28.3mm |
| 6 | Filter Length(1rod/6) | 20mm～24mm |
| 7 | Filter Length(1rod/4) | 24mm～30mm |
| Ambient Conditions | ||
| 8 | Compressed Air consumption | 34 m3/H |
| 9 | Working Pressure | ≥0.6mp |
| 10 | Air exhausting(Central dust extraction) | 2700 m3/H |
| 11 | Rated Power For Electrical System | 44.5KW |
| 12 | Total power | 47KW |
| 13 | Dimension (LXWXH) | 6740mm x 6030mm x 2600mm |
| 14 | Total Weight | 10080kgs |
This product is for making filter cigarette with different diameter and length. It consists of tobacco rod maker, filter assembler, and tray loader. It can be linked with down stream cigarette packer by tray loader and tray unloader, or it can be directly linked with cigarette packer by link-up system.
High quality of cigarette output: it has functions of filter missing detection, air leakage inspection and loose-end detection to ensure qualified cigarette output.
Complete trouble shooting system: it has function of fault alarm, fault displaying and fault diagnosis which can help shooting the trouble effectively.
Prefect cigarette weight control system: by adopting microwave weight control system, it can control cigarette weight precisely and thus save cut-tobacco consumption.
Low wastage: this machine is with stable running performance and high operating efficiency, and as the result, the wastage ratio is extremely low and running cost of this machine is reduced.
Features:
•Speed:7000cig./min.
•Cigarette length: 65-120mm(tobacco rod length and filter length can be tailor made)
•Cigarette diameter: 5.4-9mm
•Filter Length: 10~25mm(4cut) or 15~35mm(4cut)
•Total power consumption: 47kw
•Dimension(L× W× H): 6740mm×6030mm×2600mm(U)
•Total Weight: 10080kgs
Output | (7000cig/min~8000cig/min) |
Specification | |
Tipped cigarette length | 84 mm 0.5mm |
Tobacco rod length | 64mm |
Tipped cigarette diameter | 7.8mm |
Filter plug length | 120 mm 0.5mm |
Supply | 380 V 10% (3 phases) |
Frequency | 50Hz 1Hz |
Total Power | 59 KVA |
Outside dimension | |
Maker | 4500 X 2312 X 3020 |
Plug assembler | 4590 X 1089 X 2085 |
Weight | |
Maker | 7722 kg |
Plug assembler | 6366 kg |

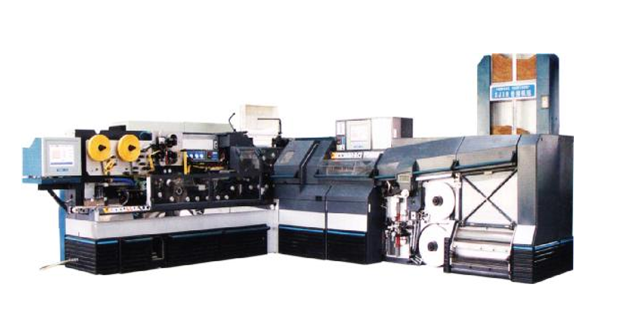

ZJ19 (PASSIM 7000) Cigarette making and plug assembling machine combination is manufactured by Xuchang Tobacco Machinery Co., LTD through absorbing and digesting the technology imported from Molins Company, England by CNTC. This combination's production's speed is up to 8000cig/min after being improved by Xuchang Tobacco Co, Ltd and has the following advantages:
1.High speed. Its production speed is 7000 cig/min ~ 8000 cig/min.
2.The quality of the produced cigarette is good-The tobacco breakage rate and the stem contents are low. The weight is automatically controlled. The dense end position is automatically calibrated. The devices of the perfect tobacco supply, the tobacco sucking and the rod formation, the cut, the separation and the tip turning, the automatic inspection and the automatic rejection. Etc can be guaranteed.
3.High automation—Automatic tobacco supply, Automatic paper supply automatic gum supply knife advance etc. Fault automatic inspection and automatic display. The defective cigarettes are automatically rejected. Automatic Lubrication.
4.Programmable Login Controller (PLC) is used in the electrical control system.
5.Module configuration design –The time of the installation and test is shot. It is easy for operation and maintenance.
6.Good safety and low noise—All the tight guards which are equipped with safety interlock switches ensure that is safe for the operator to operate; and the noise eliminated materials are good, and the sealings ensure that the machine inside is clean, and the machine outside noise is low.
7.The complete compressed air system and high-pressure system.
8.It can meet the different requirements of cigarette specifications, working mode, layout plan etc to the customers
