Cigarette Packing Machine,cigarette packer
MJ is the supplier, manufacturer of cigarette packing machine, mainly include HLP2 cigarette packing machine, GDX1, GDX2.
HLP2 cigarette packing machine
HLP2 Cigarette Packing Machine consist of bellow 5 parts:
•YB43 Packer
•Stamper
•YB59 Wrapper
•YB69 Cartoner
•YB99 Overwrapper.
It consists of hinged-lid packet packer, stamper, packet film wrapper, cartoner, and carton film overwrapper, and it can automatically perform the operation of hinged-lid packet packing, stamping, packet film wrapping, carton packing and carton film overwrapping.
This packing line is mainly composed for four single machines: YB43A Cardboard Packet Packing Machine, YB59A Packet Film Packing Machine, YB69A Carton Packing Machine and YB99 Carton Film Packing Machine (Coupon Insert Unit and YTB Tax Mark Sticking Unit are optional
1) YB43 Packer
This product is used for hard packet carton packing of cigarettes with length of 84~100mm with different diameters, and in different arrangements (10’s in 5-5, 12’s in 6-6, 16’s in 8-8, and 20’s in 7-6-7 or 10-10 arrangements).
Features:
•It has features of slow starting, automatic protecting, automatic detecting, ejecting and failure indicating, easy operation, and convenient maintenance, which makes it and ideal cigarettes packing unit for small and medium size cigarette factory.
•Especially, with its low cost, good packing quality, and stable performance, it is suitable for special such as slim packing, long cigarette packing, round corner packing, octagonal packing, and 10’s ~ 16’s packing.
Technical Specifications:
•Capacity: 180 packs/min
•Cigarette Specification: Length: 84~100mm; Diameter: 5.4~8mm
•Packet Size: 87.5x56x23.5mm(King Size)
•Carton Size: 283x90x48.5mm(King Size)
Feature:
•Wide-range application to different cigarette packet dimensions, and widely adopted in industry field of food, medicine, cosmetics etc.
•High operation efficiency and low wastage.
•Easy operation, and convenient maintenance.
•Capacity: 180 packs/min;
•Overall size: 2600x700x1600(including conveyor)
•Weight: 1450kg
•Power: 2.7KW
Features:
•Wide-range application to different cigarette packet dimensions.
•High operation efficiency and low wastage.
•Compact structure and low energy consumption.
•Easy operation, and convenient maintenance.
•Capacity: 18 cartons/min;
•Overall size: 1950x1800x1550
•Weight: 815kg
•Power: 1.5KW
This product is used for overwrapping of cigarette carton with BOPP film. Also it can be used for naked overwrapping of cigarette packets (soft and hard packets applicable) in two layers (2×5 for 20’s packet) or in four layers (4×5 for 10’s packet) directly with BOPP film(without carton).
Feature:
•Wide-range application to different cigarette packet dimensions and arrangements.
•High operation efficiency and low wastage.
•Compact structure and low energy consumption.
•Easy operation, and convenient maintenance.
•Capacity: 18 cartons/min;
or 180 packs/min. for 20’s packet naked wrapping;
or 360 packs/min. for 10’s packet naked wrapping;
•Overall size: 2100x1100x1200
•Weight: 600kg
•Power: 1.52KW
| # | 名称 Items | 参数 Parameters |
|---|---|---|
| 1 | Output Speed | 180packs／min |
| 2 | Rated efficiency | 80％ |
| 3 | Voltage | 380±10% |
| 4 | Frequency | 50Hz |
| 5 | Air Pressure | >0.6MPa |
| 6 | Air Flow | >48m3/h |
| 7 | Pressure of the Vacuum Pump | >0.05MPa |
| 8 | Air Flow from the Vacuum Pump | >60m3/h |
| 9 | Ambient Temperature | 25±5℃ |
| 10 | Relative Humidity | 55％-56％ |
| 11 | Height above sea Level | not higher than 2000m |
| 12 | Dust Content | not higher than 3mg／m3 |
| 13 | Cigarette Circumferencer | 4 24.5±0.3mm |
| 14 | Cigarette Length | 84±0.5mm |
| 15 | Way of Packets Packing | Hinged-Lid Packet |
| 16 | Collation | 7-6-7 |
| 17 | Overall Size of Packet | 87.5x56x23.5mm |
| 18 | Way Of Carton Packing | Europe Standard |
| 19 | Size of Carton | 282.5x90x48.5mm |
| 20 | Overall size of combination | 7200x6700mm |
| 21 | Total Weight of the combination | 6200kgs |
| 22 | PLC控制 PLC Control | |
| 23 | Equipment Color(Paint by buyer require) Normally green |
This product can automatically perform stamping of tax stamp to cigarette packet with different dimensions, such as king size packet, slim packet, long cigarette packet, round corner packet, and octagonal packet.
Features:
•Wide-range application to different packet dimensions.
•Automatic detecting and ejecting packets without stamp.
•High operation efficiency and low wastage.
•Easy operation, and convenient maintenance.
•Capacity: 180 packs/min;
•Tax stamp size: 45x20mm(or as per request)
roduction Capacity: | 400 packets/min (40 cartons/min) |
Cigarette Specifications |
|
Diameter: | φ7.8mm |
Length: | 84mm |
Cigarette Collation: | 7-6-7 |
Packet Dimension: | 86mm ×54.5mm ×22.5mm |
Stamp Specifications |
|
Width: | 19mm ~23mm |
Length: | 42mm~50mm |
Carton Dimension: | 274mm × 87.5mm × 46.5mm |
(American and European style) | |
Noise Level: | ≤85 dB(A) |
Power: | 19.1kw |
Weight: | 9370kg |
Floor Area: | 7300mm × 7600mm |
(All the products specification can be configured upon customized requirements.) | |

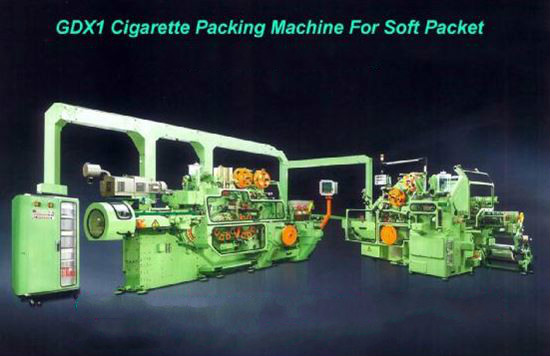

GDX1 Cigarette Packing Machine is also a medium-speed model, capable of producing 400 soft packets per minute. It was developed on the basis of X1SC/4350/PACK-OW, which technology was introduced through the Technology Transfer Agreement between G.D, and China National Tobacco Corp. It consists of an YB15 Tray Feeder, an YB25 Cigarette Soft Packer, an YB55 Cellophaner, an YB65 Cartoner and an YB95 Overwrapper.
It was developed on the basis of X2 SC/4350/PACK-OW, whose technology was introduced through the Technology Transfer Agreement between G.D. Italy, and China National Tobacco Corp. As a domestic product, GDX2 consists of an YB15 Tray Feeder, an YB45 Hinge-lid Packer, an YB55A Cellophaner, an YB65A Cartoner and an YB95A Overwrapper.
Features:
The entire working process, from cigarettes feeding to carton overwrapping, is completed automatically without any manual contact. The settings of machine operation, quality control, shift reporting, enhanced stoppage analysis, machine status, diagnostics and system calibration are achieved entirely digitally by the brand new MICRO-II system with integrated touch screens.
400 Packets / min Cigarette Packing Machine For Hardpack
Production Capacity: 400 packets/min (40 cartons/min)
Cigarette Specification:
1. Diameter: φ7.8mm
2. Length: 84mm
· Cigarette Collation 7-6-7
Packet Dimension: 86mm × 54.5mm × 22.5mm
· Stamp Specification:
1. Width: 19mm~23mm
2. Length: 42mm~50mm
· Carton Dimension: 274mm × 87.5mm ×46.5mm
1.(American and European style)
· Noise level: ≤85dB(A)
Power: 19.1kw
Weight: 9370kg
Floor Area: 7300mm × 6300mm
Production Capacity: | 400 packets/min (40cartons/min) |
Cigarette Specification: |
|
1. Diameter: | φ7.8mm |
2. Length: | 84mm |
Cigarette Collation | 7-6-7 |
Packet Dimension: | 86mm × 54.5mm × 22.5mm |
Stamp Specification: |
|
1. Width: | 19mm~23mm |
2. Length: | 42mm~50mm |
Carton Dimension: | 274mm × 87.5mm ×46.5mm |
1. (American and European style) |
|
Noise level: | ≤85dB(A) |
Power: | 19.1kw |
Weight: | 9370kg |
Floor Area: | 7300mm × 6300mm |
(All the products specification can be configured upon customized requirements.) | |
