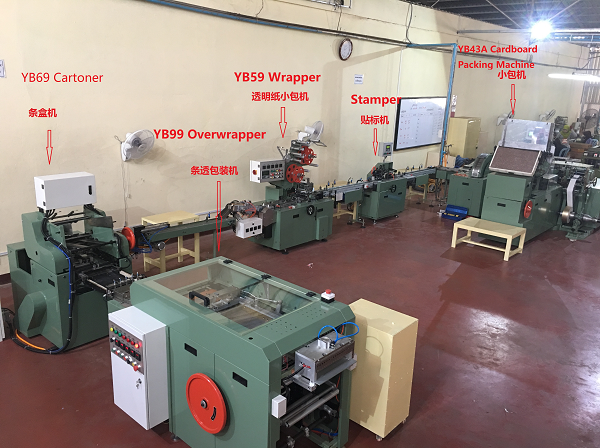

HLP2 Cigarette Packing Machine Line

Brief Introduction

The HLP2 cigarette packing machine line is a mature automatic packing system for hinge-lid cigarette packs. It automatically finishes cigarette arrangement, inner aluminium foil wrapping, packet folding, tax stamp application and outer packaging. Running steadily at up to 180 packs per minute, this new production line features reliable double plunger structure and easy parameter adjustment. It supports king-size cigarette packs and matches seamlessly with MK8 cigarette makers, delivering consistent packing quality and low downtime for tobacco manufacturers.

Technical specifications as below

1 Output Speed 180packs/min
2 Rated efficiency 80%
3 Voltage 380±10%
4 Frequency 50Hz
5 Air Pressure >0.6MPa
6 Air Flow >48m3/h
7 Pressure of the Vacuum Pump >0.05MPa
8 Air Flow from the Vacuum Pump >60m3/h
9 Ambient Temperature 25±5℃
10 Relative Humidity 55%-56%
11 Height above sea Level not higher than 2000m
12 Dust Content not higher than 3mg/m3
13 Cigarette Circumferencer 4 24.5±0.3mm
14 Cigarette Length 84±0.5mm
15 Way of Packets Packing Hinged-Lid Packet
16 Collation 7-6-7
17  Overall Size of Packet 87.5x56x23.5mm
18 Way Of Carton Packing Europe Standard
19 Size of Carton 282.5x90x48.5mm

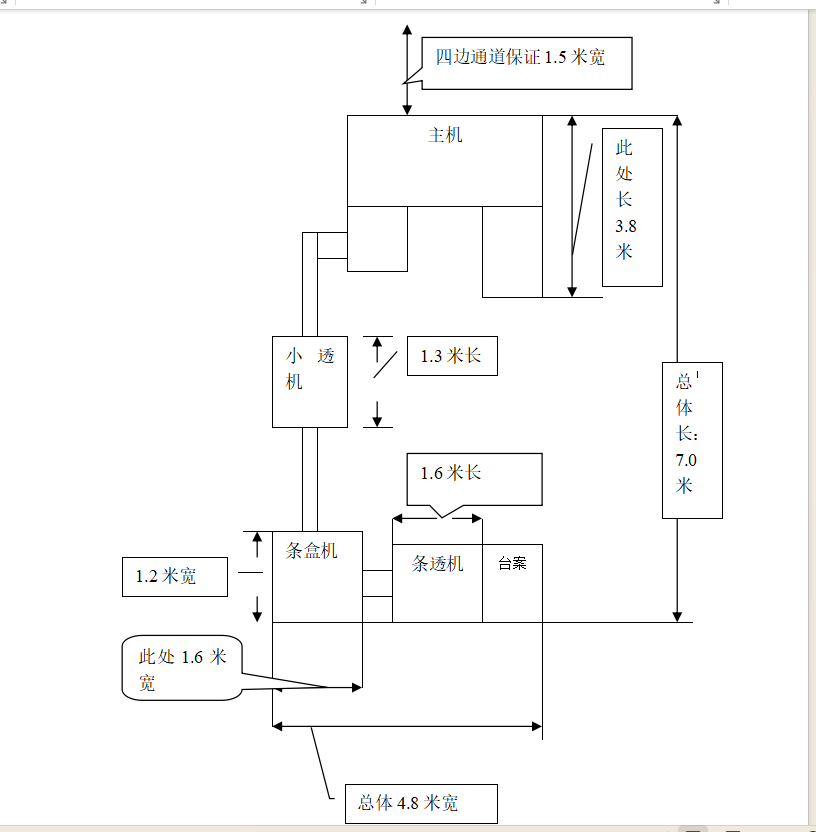

20 Overall size of combination 7200x6700mm
21 Total Weight of the combination 6200kgs
22 PLC Control
23 Equipment Color(Paint by buyer require) Normally green

Production Process

  1. Arrangement
  2. Foil wrapping
  3. Packet forming
  4. Sealing

HLP FAQ

Installation & Support

From factory floor to yours — end-to-end

Consultation

We understand your capacity, factory layout and target markets.

Machine Manufacturing

Precision fabrication and assembly at our  plant

Quality Inspection

Full FAT with rod, weight and speed validation before dispatch.

Shipping

Safe seaworthy packaging and container loading for export.

Installation

On-site installation and commissioning by our engineers.

Operator Training

Hands-on training on operation, changeovers and maintenance.
